Single Door Metal Electrical Enclosure Box , Wall Mount Electric Distribution Box

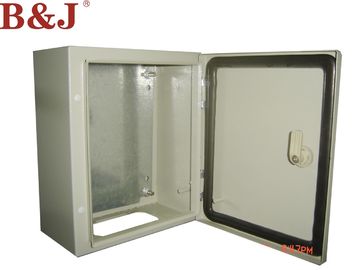

Large Image : Single Door Metal Electrical Enclosure Box , Wall Mount Electric Distribution Box

Product Details:

Place of Origin:	WENZHOU
Brand Name:	B&J
Certification:	TUV
Model Number:	BJS1

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	according to your quantity
Packaging Details:	CARTON
Delivery Time:	According to your quantity
Payment Terms:	L/C, T/T, L/C, Western Union, D/P, MoneyGram
Supply Ability:	40000 PCS PER MONTH

Contact Now

Detailed Product Description

Material:	1.2 Mm Galvanized Sheet	Mounting Plate:	Galvanized Sheet
Thickness:	1.2mm	Paint Finish:	Epoxy Polyester Coating
Size:	400x300x200mm	Lock:	Plastic Lock
High Light:	metal weatherproof junction box , metal electronic project enclosures

power distribution surface mounted enclosure with single door

Applications:

The BJS1 Series is a group of steel enclosures used to house electrical or electronic switchgear, control gear and equipment necessary to supply, distribute and transform electricity in industrial installations.
This series comprises an extensive range of standard models made with premium-quality
materials in cold-rolled steel plate or stainless steel. Both of these materials are available in BJS1 version
The design and manufacture of this product line is flexible and can be customized for settings that require specific dimensions depending on user requirements and installations.
The full range is accompanied by a set of complementary accessories: mounting plates,
inner doors, canopies, eyebolts, ventilation systems, chassis, etc.

Features:

IP66 protection rating
Specially designed gutter system
120º door opening provides easy access
Door rails come as standard fitted to the inside of the door
Unique wall-mount feature ensures installation is quick and easy with no need to drill holes in the enclosures body

Standards

IEC 60529, IP66,IK10

Seuface finish:

Enclosure and door: Epoxy polyester powder coating textured finish
Color: RAL7032 ,RAL7035 and custom

Construction

Formed 1.2mm or 1.5mm steel.
Smooth, continuously welded seams ground smooth.
Door stiffeners are provided where required for increased strength and rigidity - designed to also permit additional mounting options.
Formed lip on enclosure to exclude flowing liquids and contaminants.
Door latches feature the added safety of quarter turn slot requiring use of tool for opening.
Doors may be easily removed for modifications and are interchangeable.
Seamless poured-in place gasket.
Collar studs provided for mounting plate
Includes hardware kit with panel mounting nuts and sealing washers for wall mounting holes.
Bonding stud provided on door and grounding stud installed in enclosure.
turn latch and multi-point handle (key lockable) are zinc diecast with epoxy finish.

Material:

Enclosure: sheet steel 1.2mm till height 800 then 1.5mm
Door: sheet steel 1.2mm till height 600 then 1.5mm
Mounting plate:1.5mm till height 800 then 2.0mm

Supply include:

Enclosure and door,mounting plate,lock system,gland plate,sealing gasket and accessories

Dimension(mm):

Reference	Size
BJS1-22/150	200	200	150
BJS1-2520/150	250	200	150
BJS1-32/150	300	200	150
BJS1-33/150	300	300	150
BJS1-33/200	300	300	200
BJS1-43/150	400	300	150
BJS1-43/200	400	300	200
BJS1-44/150	400	400	150
BJS1-44/200	400	400	200
BJS1-54/200	500	400	200
BJS1-55/200	500	500	200
BJS1-64/200	600	400	200
BJS1-64/250	600	400	250
BJS1-65/200	600	500	200
BJS1-65/250	600	500	250
BJS1-86/200	800	600	200
BJS1-86/250	800	600	250
BJS1-106/350	1000	600	350
BJS1-106/300	1000	600	300
BJS1-108/350	1000	800	350
BJS1-108/300	1000	800	300
BJS1-128/300	1200	800	300
BJS1-1210/300	1200	1000	300
BJS1-1212/300	1200	1200	300

Single Door Metal Electrical Enclosure Box , Wall Mount Electric Distribution Box 0
